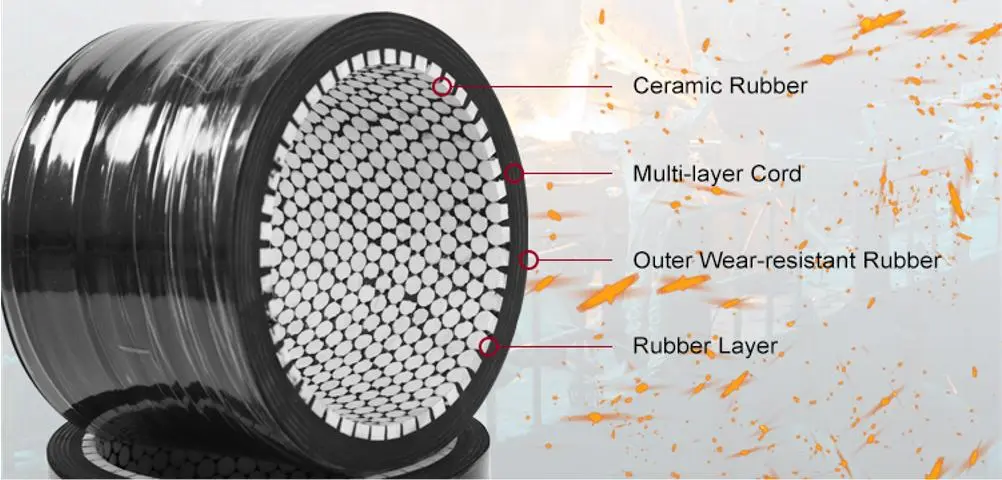

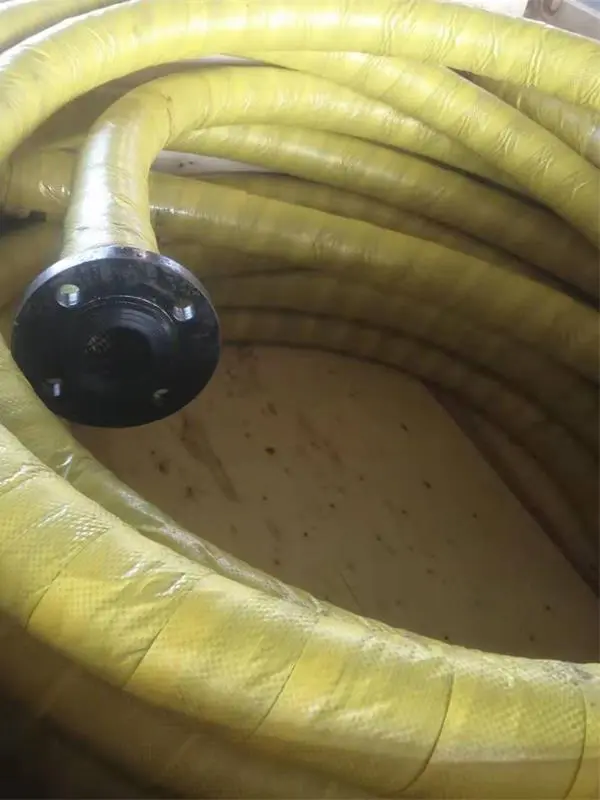

Alumina ceramic lining wear resistant is 5 times better than steel, performing far better than usual rubber hose.
Severe impact will not harm the ceramic internal; the force is transferred through the ceramic and dissipated through the rubber lining.

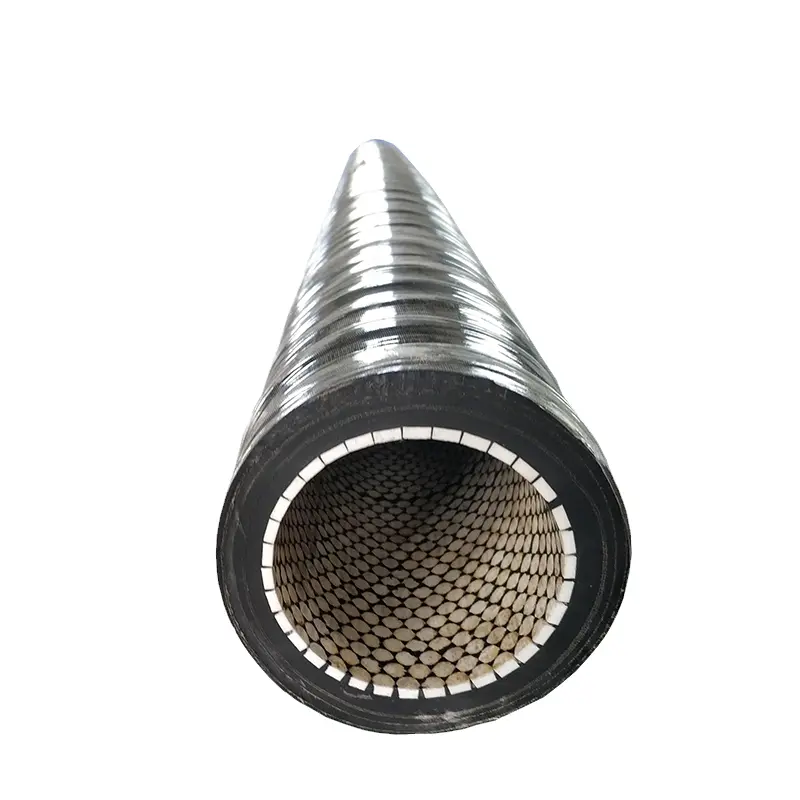

The cylindrical alumina wear segment design allows for generous flexibility without adverse effects on erosion resistance.
The specialized rubber offers a wide range of resistance against nearly all harsh chemicals found in slurry.
| Diameter (Inch) | Diameter (DN) | Inside Diameter (mm) | Outside Diameter (mm) | Resistance to Bending | Length (m) |
|---|---|---|---|---|---|
| 1" | 25 | 25.4 | 42 | 300 | 10 |
| 1-1/4" | 32 | 31.8 | 50 | 380 | 10 |
| 1-1/2" | 38 | 38.1 | 56 | 480 | 10 |
| 2" | 50 | 50.8 | 72 | 600 | 20 |
| 2-1/2" | 65 | 63.5 | 94 | 780 | 20 |
| 3" | 75 | 76.2 | 105 | 900 | 20 |
| 3-1/2" | 90 | 88.9 | 120 | 1080 | 20 |
| 4" | 100 | 101.6 | 140 | 1200 | 20 |
| 5" | 125 | 127.0 | 160 | 1500 | 20 |
| 6" | 150 | 152.4 | 190 | 1800 | 20 |
| 8" | 200 | 200.0 | 235 | 2400 | 20 |
| 10" | 250 | 250.0 | 290 | 3000 | 20 |
| 12" | 300 | 300.0 | 350 | 3600 | 20 |
