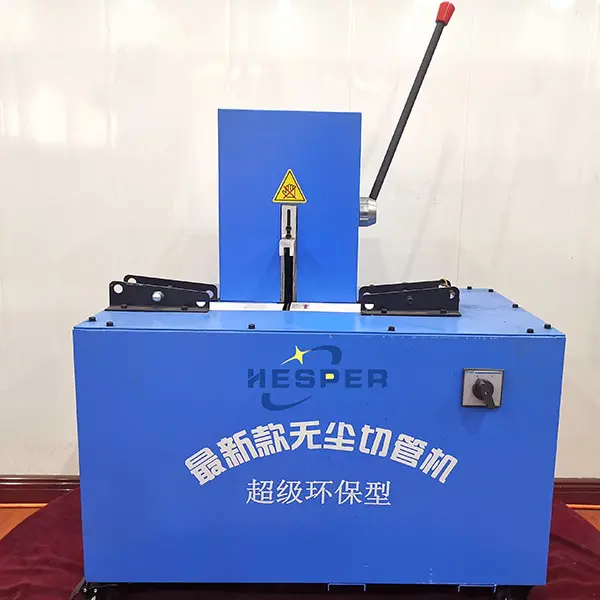

Hydraulic Rubber Hose Cutting Machine
These hose cutting machines combine advanced cutting technology, utilizing specialized core slices. The dust-free hose cutting machine features high rigidity, minimal thermal deformation, rapid cutting speeds, low wear, and zero chipping. A balanced feed system ensures uniform cutting force, while a unique cushioning mechanism guarantees a smoother and safer operation. This equipment is suitable for cutting various types of steel wire braided hoses, wire wound hoses, cloth pipes, and cotton pipes with diameters ranging from 6mm to 51mm. It is an ideal solution for hose maintenance and manufacturing.
Key Features
⚙️
Simple Structure
Linear type design, easy to install and maintain.
⚡
High Efficiency
High-speed operation with zero pollution.
📏
Wide Range
Cuts hydraulic hoses up to 51 mm (2 inch) in diameter.
🖐️
Easy Operation
User-friendly manual operation for precision control.
Technical Specifications
| Model: HSP-ND |
| Product Name | Rubber Hose Cutting Machine |
| Cutting Range | 6mm to 51mm (1/4" to 2") |
| Working Voltage | 220V/3kw or 380V/4Kw (Customizable) |
| Control System | Electric Manual |
| Machine Dimension | 760*510*850mm |
| Package Dimension | 860*610*950mm |
| Weight (N.W/G.W) | 90kg/100kg |
| Special Features | Dust-free, Low Noise |
| Model: HSP-EO (Economic) |
| Product Name | Hose Cutting Machine |
| Cutting Range | 6mm to 51mm |
| Working Voltage | 220V/3Kw or 380V/4kw (Customizable) |
| Machine Dimension | 650*410*425mm |
| Package Dimension | 700*530*580mm |
| Weight (N.W/G.W) | 55KG/65KG |
| Main Feature | Economic and Compact |
Frequently Asked Questions
What is the maximum hose diameter these machines can cut?
Both the HSP-ND and HSP-EO models can cut hydraulic hoses with a diameter ranging from 6mm to 51mm (up to 2 inches).
Is the cutting process environmentally friendly?
Yes, the machines are designed to be dust-free and produce low noise, ensuring no pollution during the cutting process.
What types of hoses are compatible with this equipment?
These machines are suitable for steel wire braided hoses, wire wound hoses, cloth pipes, and cotton pipes.
Can the working voltage be customized for different regions?
Yes, standard options include 220V/3kW or 380V/4kW, but customization is available to meet specific electrical requirements.
What are the main differences between the HSP-ND and HSP-EO models?
The HSP-ND is a larger, heavy-duty unit (90kg) with an electric manual system, while the HSP-EO is an economic, compact version (55kg) designed for cost-efficiency and smaller spaces.
How does the machine ensure a clean cut?
The machines use a special core slice combined with a balanced feed system and cushioning mechanism to ensure high rigidity and no chipping during operation.
