The hose is suitable for the conveyance of steam (+180°C) and hot water (+120°C), at continuous temperature of more than +150°C the operating time of steam hoses becomes considerably shorter. The highest can afford 220°C but at flash temperature not continuous.
Standard Length: 20 or 40 meters for choice
Construction:
Inner: Black EPDM rubber, heat resistant
Reinforcement: High tensile, heat resistant cord
Cover: red or black EPDM rubber, smooth or texture surface for choice

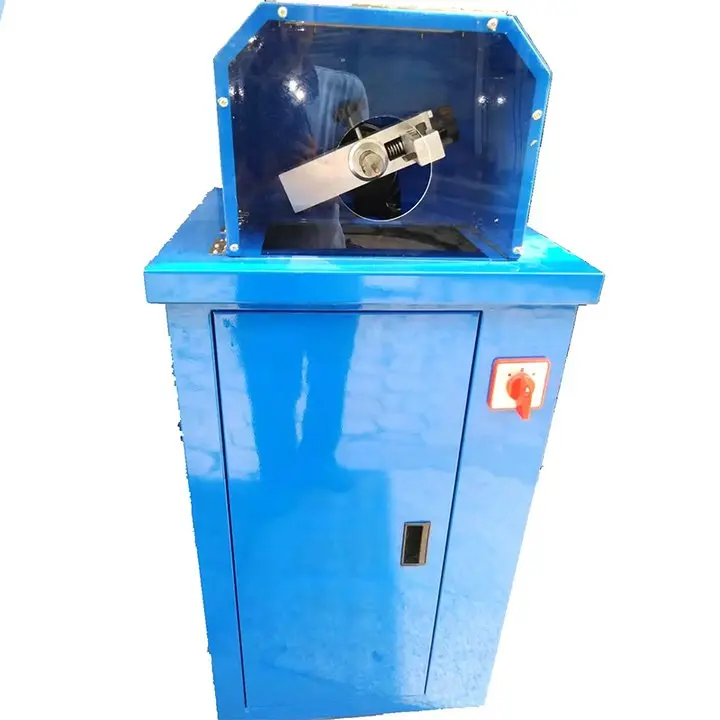

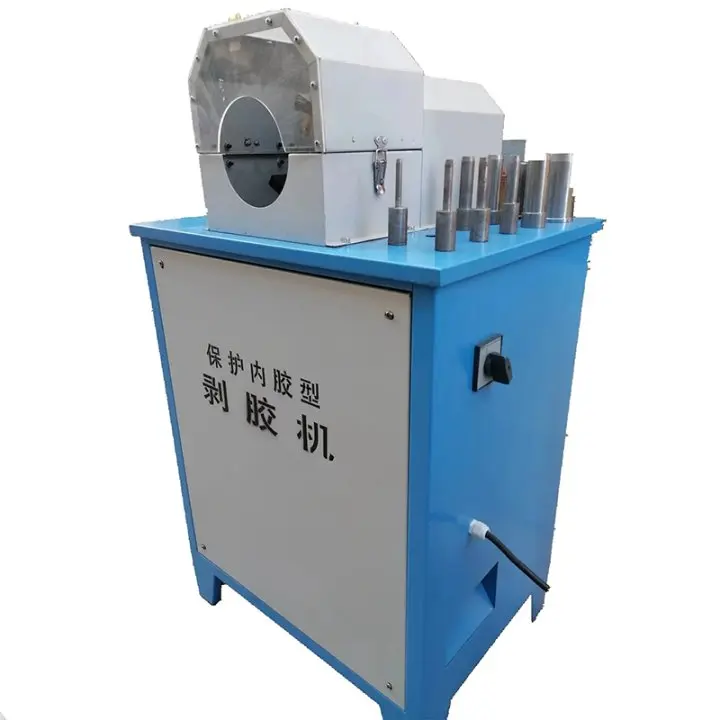

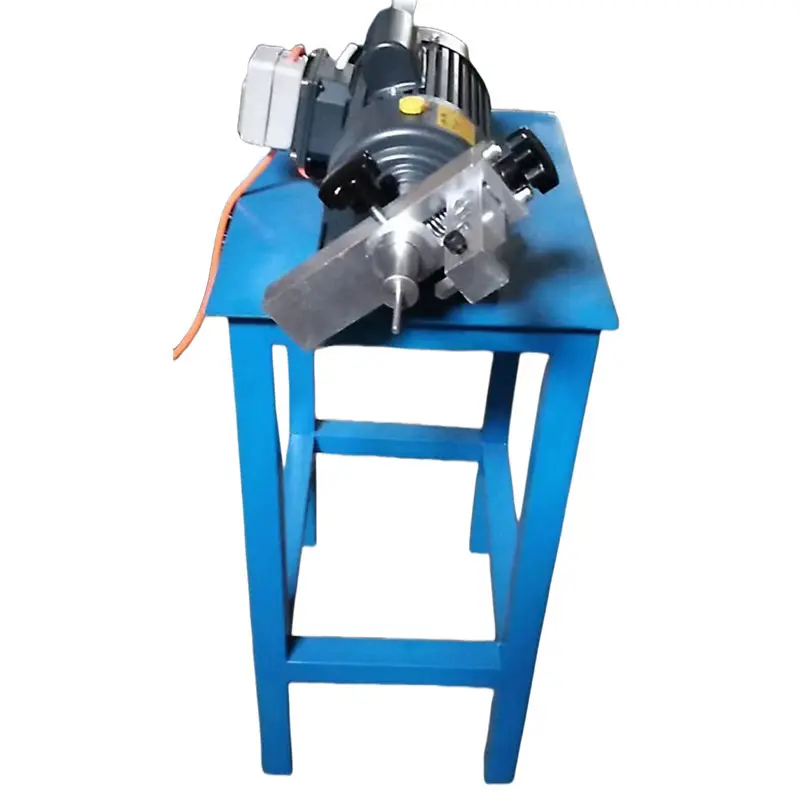

Hose skiving machine includes machine body (frame and shell), power traction device and skiving device. Our hose skiving machine has a simple structure and is easy to operate. It is convenient to adjust the depth of cutting hoses, which can greatly reduce the labor intensity of cutting and stripping hoses, also improve production efficiency.
Product Features

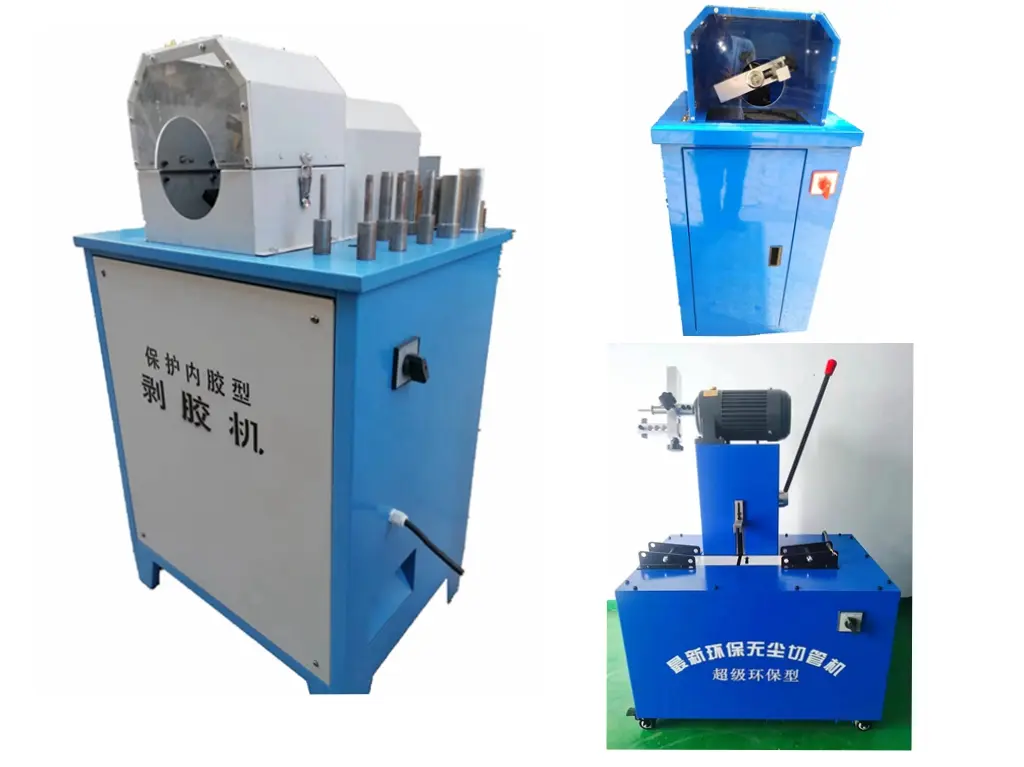

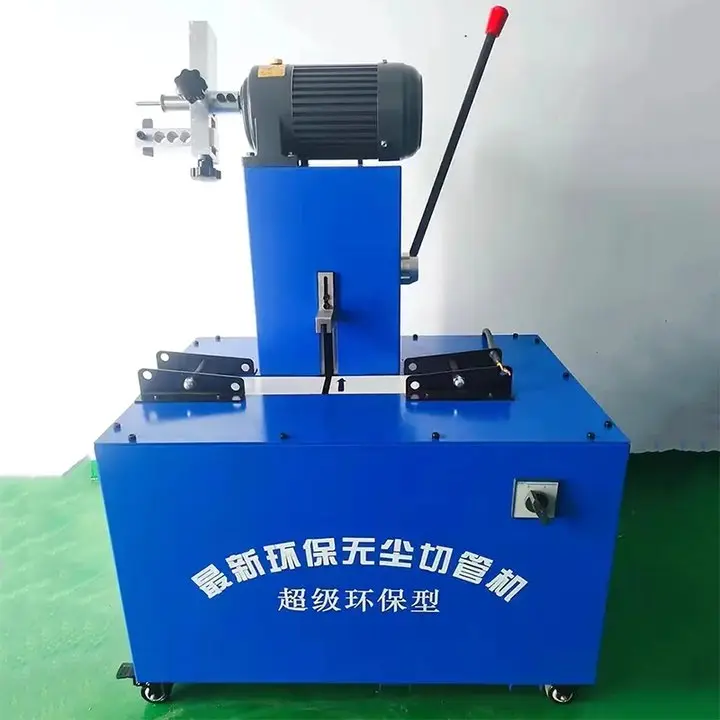

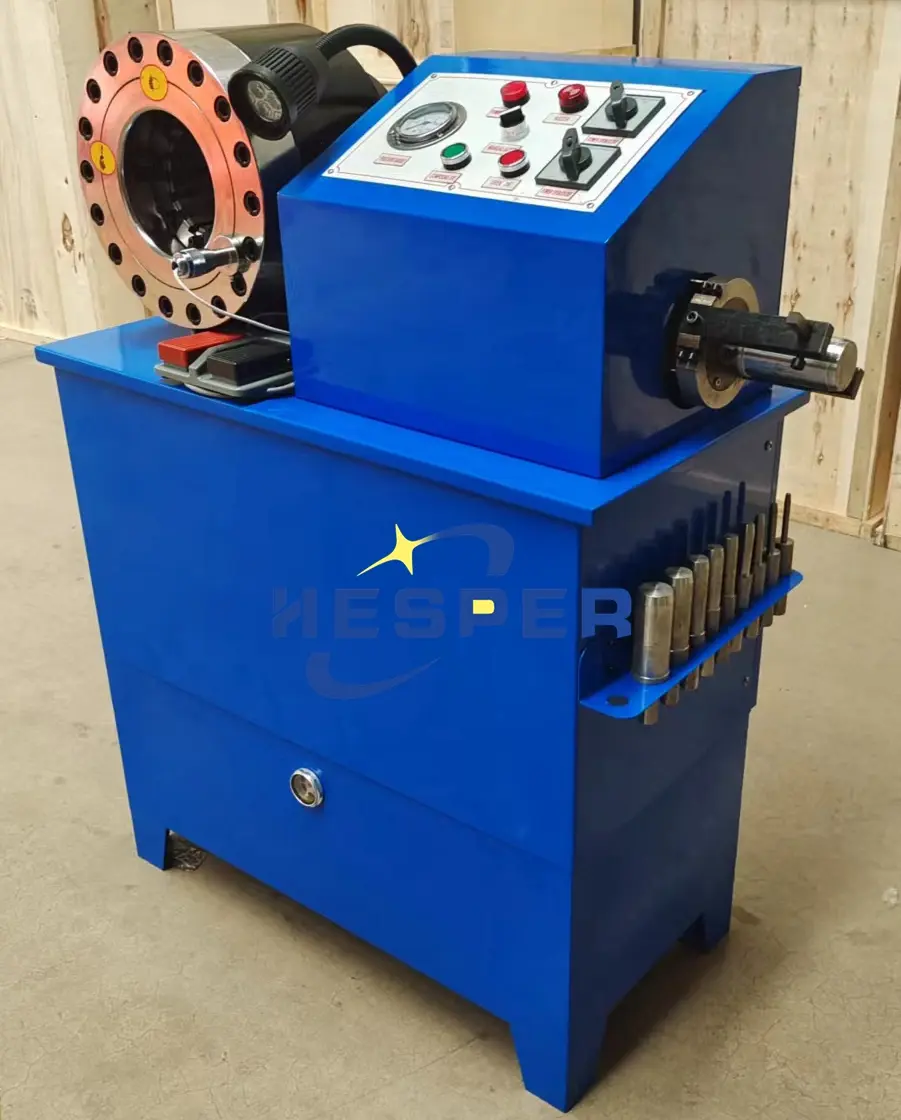

Except hose skiving machines, we also have hose cutting skiving machine and hose crimping skiving machine, which can realize two functions in one machine.
Skiving Range
6-51mm or customized
Motor speed
200r/min or 400r/min for choice
Voltage
220V/380V or customize
Weight
Around 60kgs
Package dimension
600*600*1180mm
Operating Instructions
1
Before starting the machine, the protective cover must be installed, and check whether there are people or obstacles in front and behind the hose skiving machine.
2
The power must be cut off when opening the protective cover for inspection.
3
Before starting the machine, it is necessary to check whether the rotary knife and the mold core meet the specifications of the rubber hose.
4

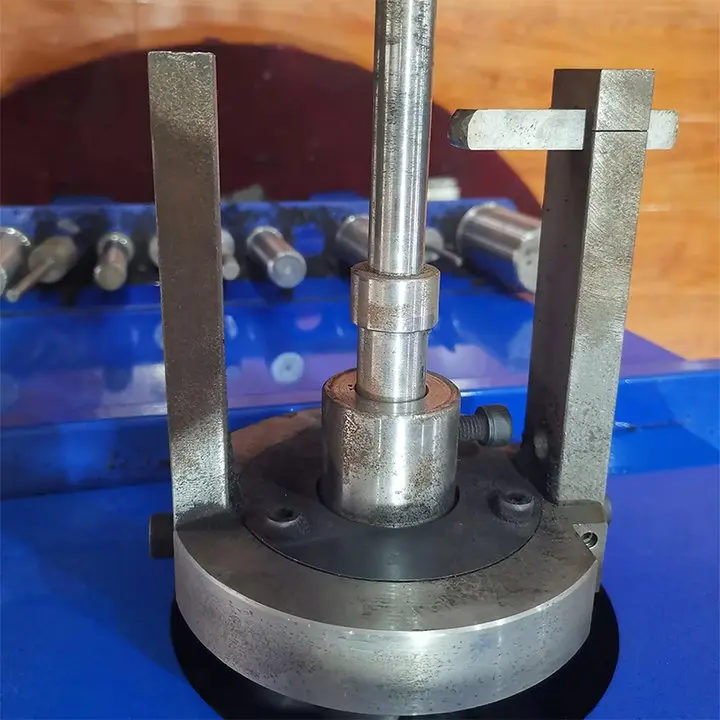

Before starting the machine, carefully measure the distance between the rotary knife and the mold core. Based on the measured length, determine the degree of skiving, calculate the data between the rotary knife and the hose steel wire layer. Test peeling with scrap material first, adjusting gradually from large to small diameter until rubber is peeled cleanly.
5
If any abnormality is found when the hose skiving machine is running, it should be stopped immediately.
6
When the skiving machine is running, the hose held by the operator must be kept balanced to prevent the rotary knife from scratching the hose wire.
7
The rotary knife must be firmly fixed. It is prohibited to remove cut rubber strips by hand while the machine is running to avoid danger.
8
Individuals who have not received special training for this job will be not allowed to operate this machine.
9
After work is completed, turn off the main power supply and clean the work site and machine.
Frequently Asked Questions
What is the main purpose of a hose skiving machine?
It is used to strip the outer or inner rubber layer of hydraulic hoses to prepare them for crimping with fittings, ensuring a more secure and leak-proof connection.
What hose sizes can this machine handle?
The standard skiving range is 6mm to 51mm, though customization is available for specific industrial requirements.
Does the machine support different voltage standards?
Yes, we provide 220V and 380V options, and the voltage can be customized to match your local industrial power supply.
How do I ensure the skiving depth is correct?
You should measure the distance between the rotary knife and mold core, then perform a test peel on scrap material, adjusting the diameter gradually until the rubber is removed cleanly without damaging the wire.
Is the machine suitable for high-volume production?
Absolutely. The machine is designed with a power traction device to reduce labor intensity and significantly improve production efficiency compared to manual methods.
Can one machine perform both cutting and skiving?
While the standard model is focused on skiving, we also offer integrated hose cutting and skiving machines that combine both functions in a single unit.
